Comfort-2 Eco with special TMS option set

Optimal solution for TMS (Transcranial magnetic stimulation) therapy

C2 Eco&Flex Neurology Safran_Perle

The TMS option  set has been desingned to fulfill the special needs of the TMS therapy. The headrest provides stable position of the cranium during the treatment, while it is flexibly adjustable to perfetcly mach the anatomy of the patient.

Comfort-2 Eco is  the simplest and most popular member of the Digiterm family. It offers the basic functions of adjusting the backrest and the legrest while providing optimal comfort to the patient even during long, 4-6 hours treatments. Many optional functions are available to add functionality or safety, to mention only one, the motorization of the footrest. It is the most popular and universal chair of the product line. It is long lasting and durable.

Applications: TMS Therapies

Request a Quote

TMS option set

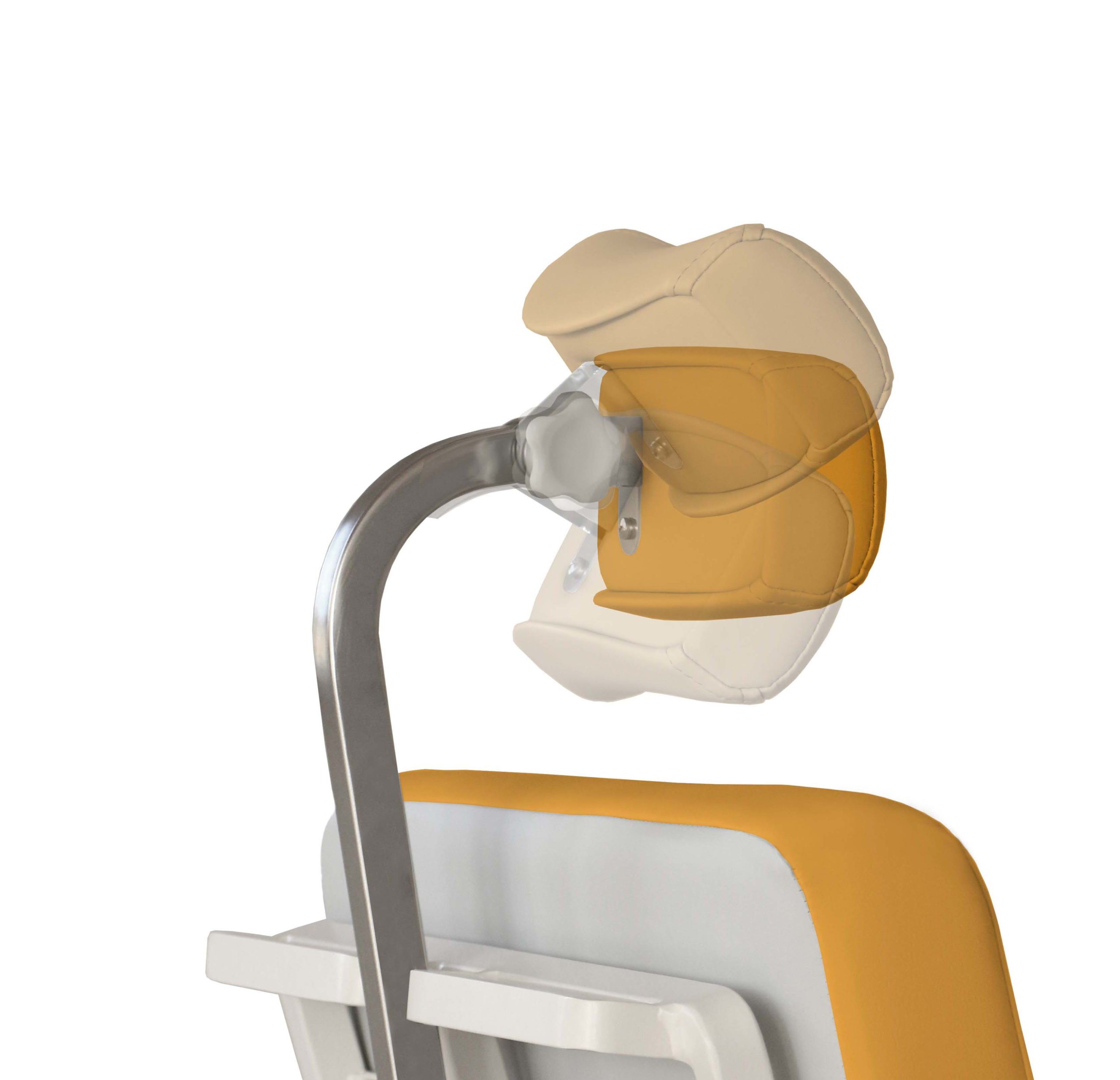

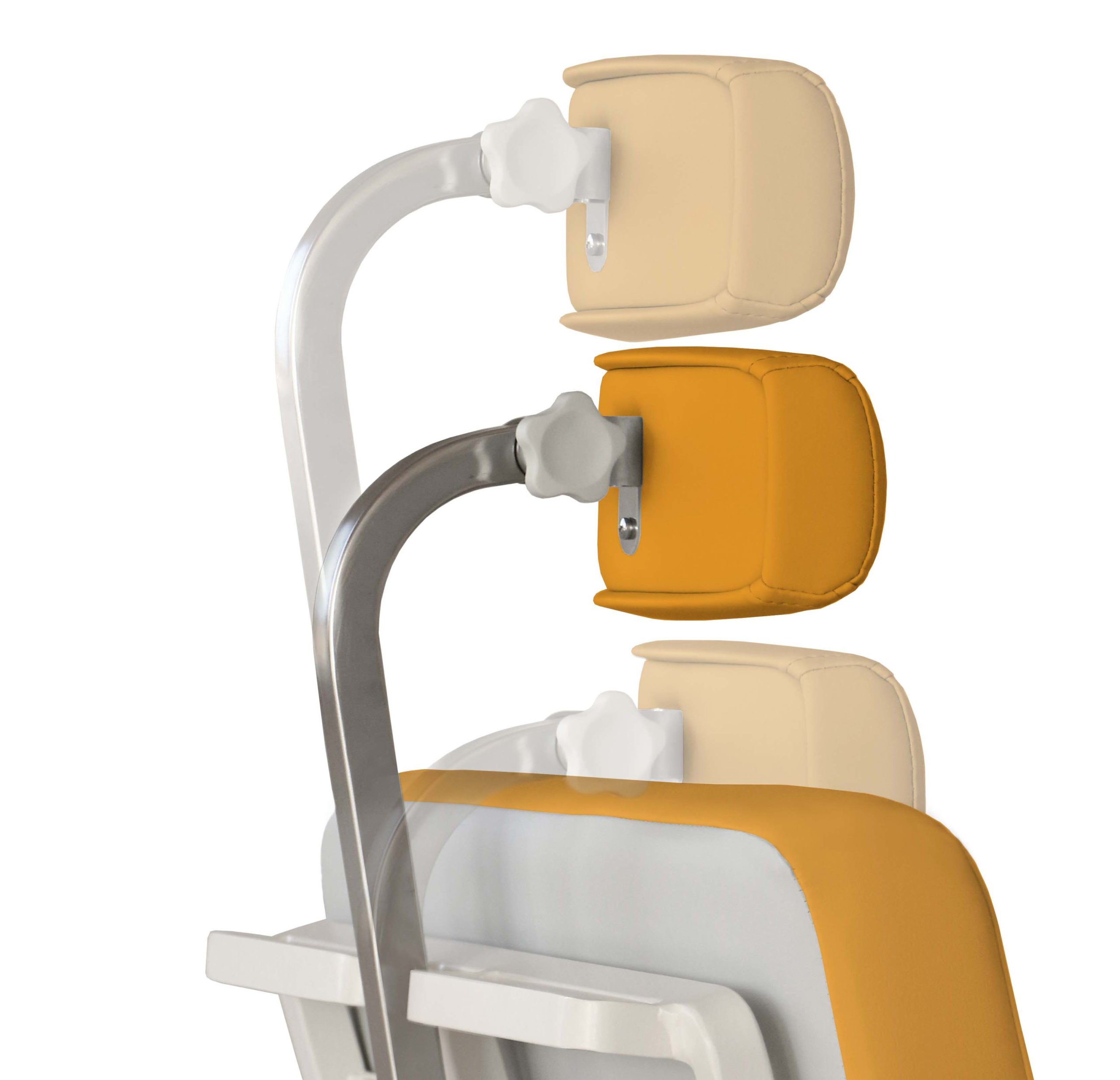

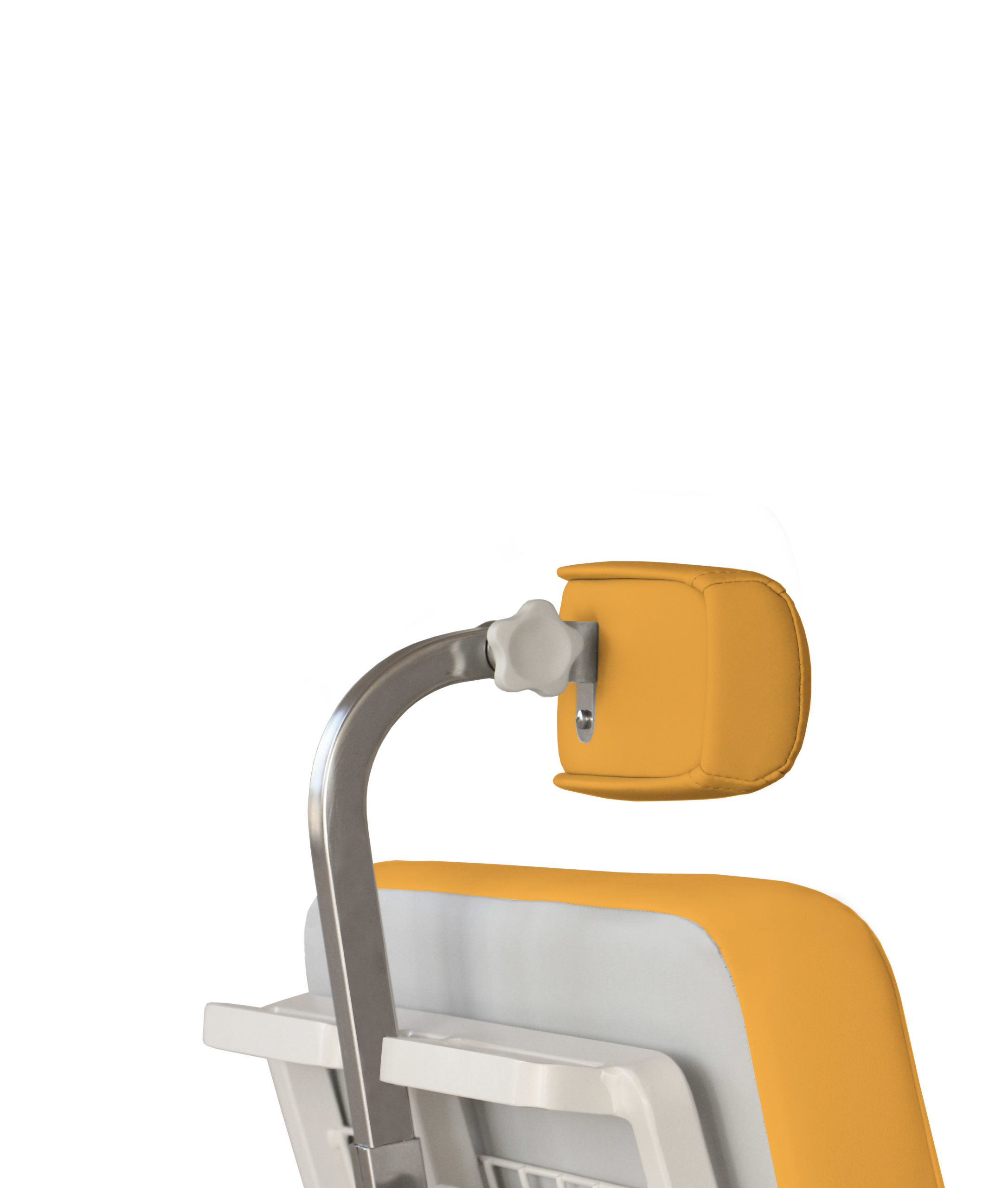

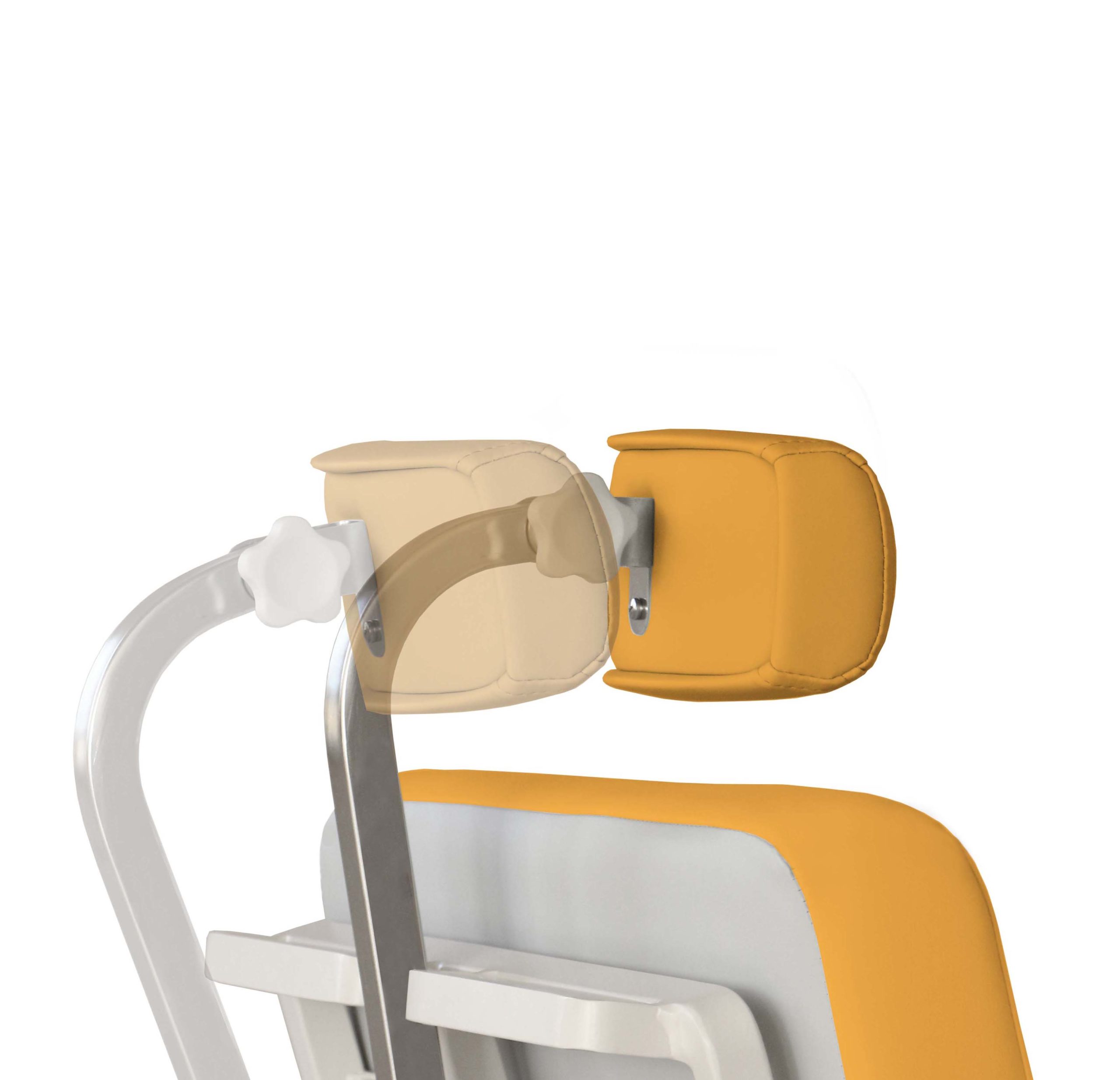

● Headrest & Neck support

The multiply adjustable neck rest ensures stable and comfortable positioning of the patient’s head during treatment

● Special backrest construction

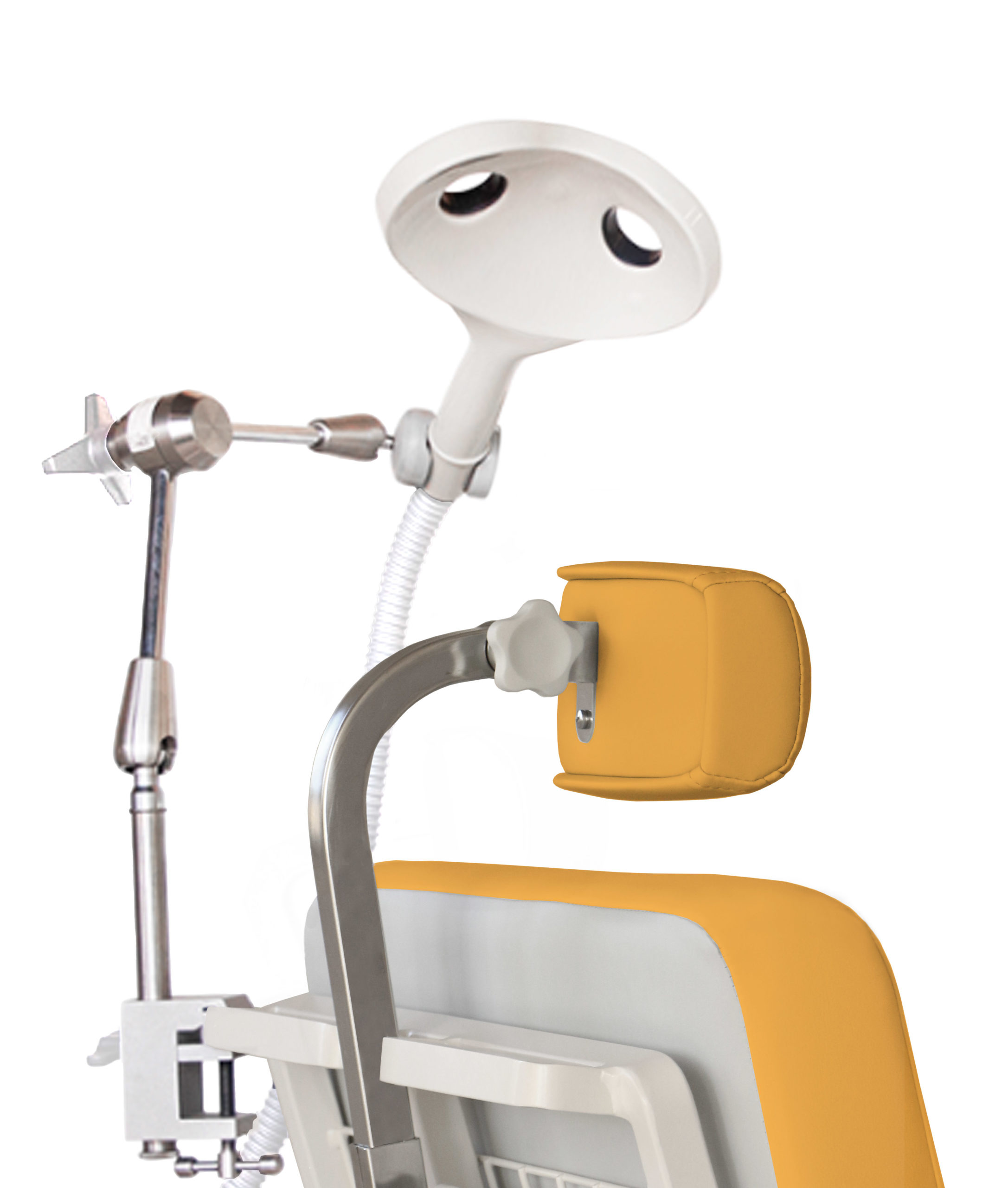

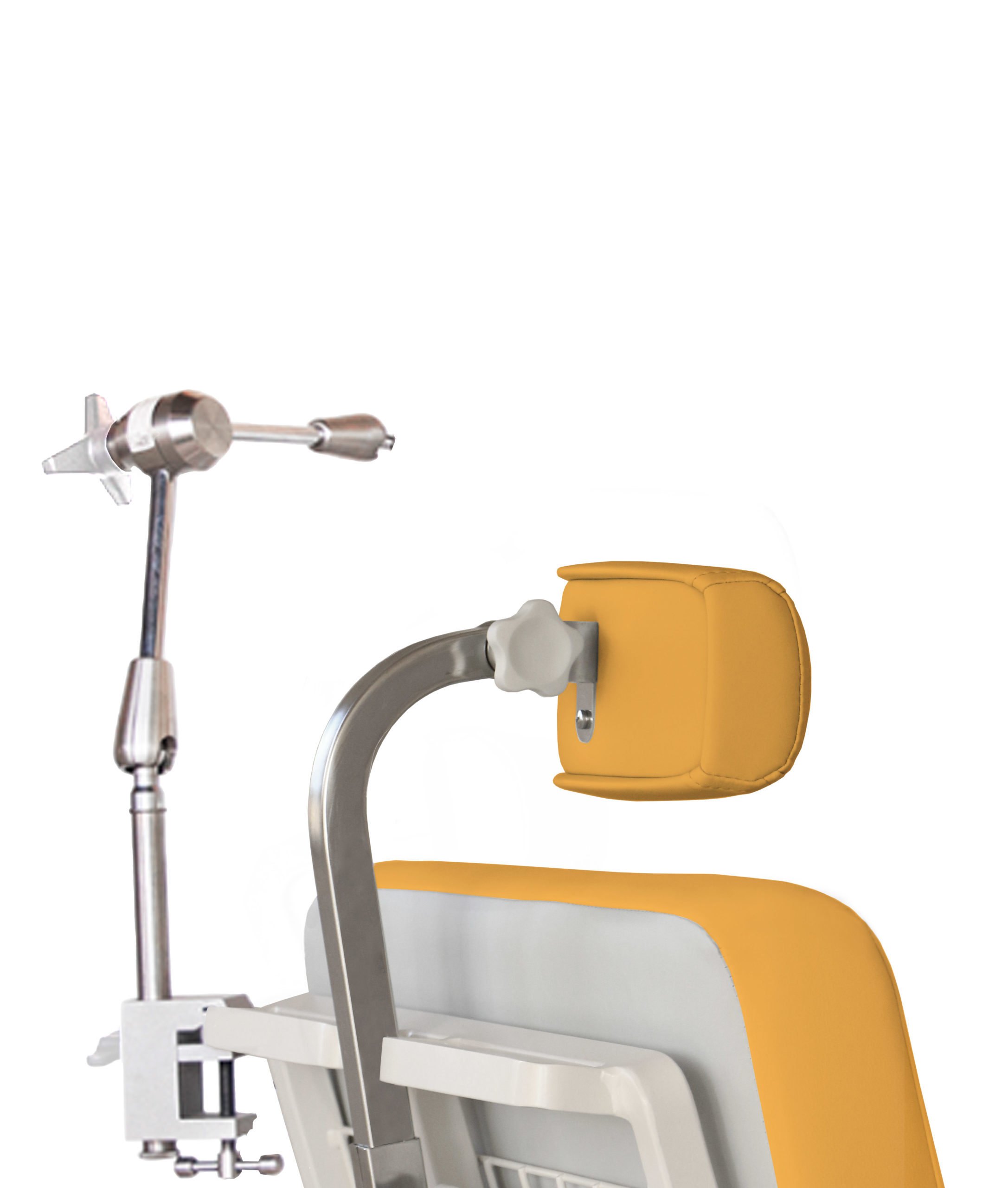

The special holder for the coil can be reliably attached onto the special backrest of the chair providing immobility for the coil during the long TMS session.

The coil and the coil holder shown in the pictures below are for illustration only, not part of our product range.

Adjustments

● Electronic adjustments

Multiple independent adjustment possibilities by 2 motors offer patient comfort, plus a reduction in work for staff.

2 motors as standard:

  • backrest
  • legrest
  • seat tilt (optional)
  • footrest (optional)

● Manual adjustment

  • footrest adjustment manually

Handset

Especially designed for medical applications:

  • Longlife micro-switches are located under an exchangeable keypad foil
  • Liquid proof housing with IP 67 protection
  • Easy-to-use 11 buttons handset

Dedicated grey buttons for each movement.

  • Yellow coloured buttons to set EntryBed positions by multimovement
  • The head-down "Trendelenburg" posit ion can be reached easily from any previous one by using the red button
  • Individual buttons for optional movement (seat tilt adjustment and footrest adjustment)

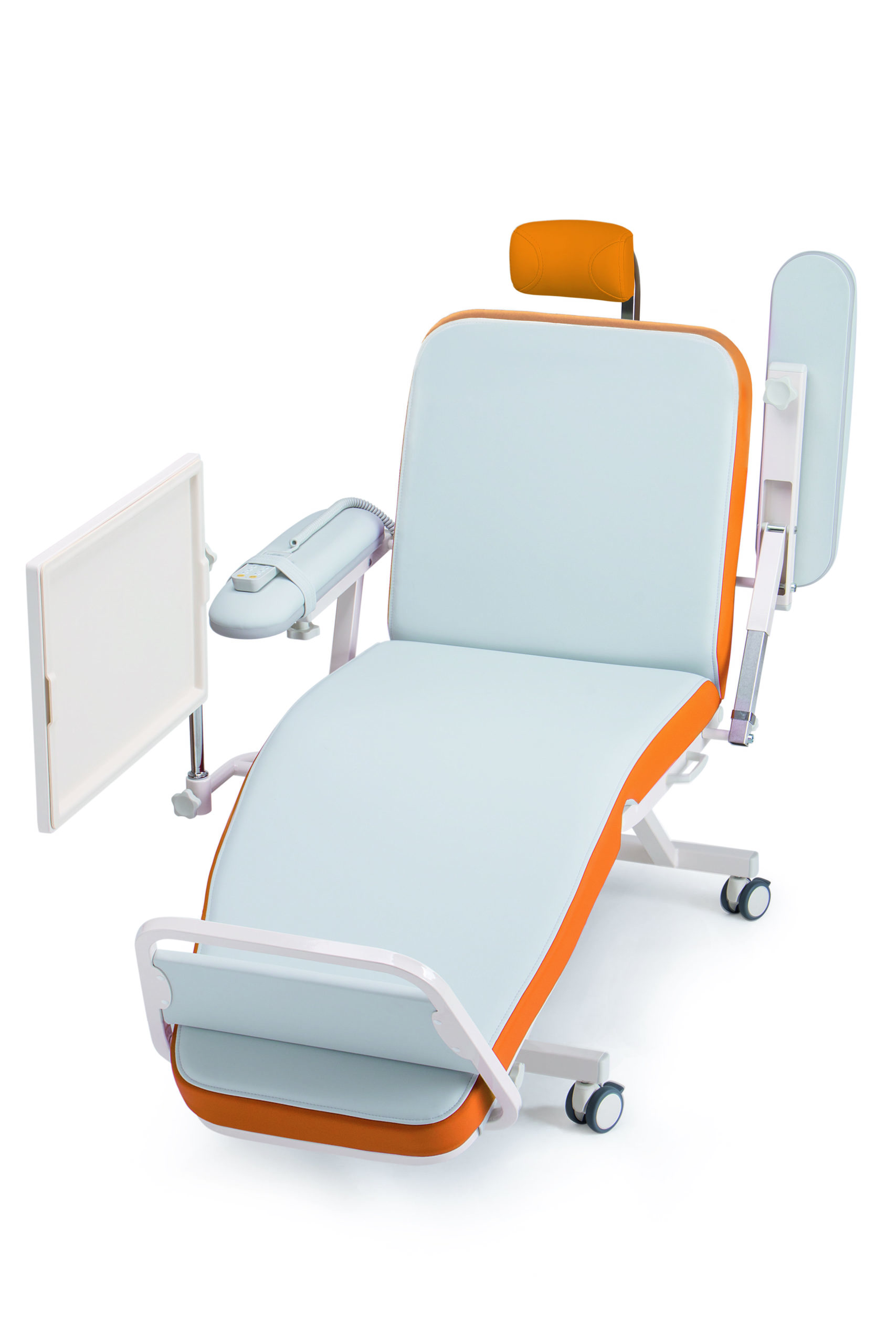

Entry position

Supporting the entry

By using this    button on the handset the chair can be brought to the upright (Entry) position automatically from any previous one. Thereby allowing the patient easily to enter or leave the chair.

Bed position

Perfectly horizontal Bed position

Especially designed construction ensures achieving perfectly horizontal Bed position for maximum patient comfort while passing through several relaxation positions.

By using this    button on handset the chair can be brought automatically into the BED position.

Trendelenburg Position

 TRB position

The backrest adjusting range ensures Trendelenburg position.

Trendelenburg position can be set by using the red button on handset.

Tilt-up armrest

The solid upholstered armrest makes it possible to achieve the most suitable and restful arm position for any physique.
It can adjusted in height and entry is facilitated by simply tilting it up.
The multilayered soft armrest cushion is completely sealed against liquids and ensures improved patient comfort.
Optionally the distance between armrests can be adjusted also by swivelling completely.

Brake system/castors

Diameter 7,5 cm twin wheel castor with total lock.

Locks the wheels (twin wheel) and swivel simultaneously for maximum stability when the equipment is stationary.

  • Twin wheel rotational motion in both directions (lockable)
  • Swivel motion in both directions (lockable)
Standard colour combinationDuoShape upholstery

Exchangeable upholstery

Clean and modern design with dual colour for fresh look

It has been designed according to the latest developments in orthopaedics and ergonomics.

Can be removed easily with a few movements for cleaning or maintenance. Interchangeable with the previous upholstery types.

This new easy-to-clean upholstery covered by blood resistant artificial leather which is resistant to disinfectants, blood and urine too. The unified seat and legrest surfaces are more comfortable and easier to clean.

Instead of standard Chrom/Perle upholstery more than 50 alternative colours are available upon request.

Many other colour combinations available

Sample Upholstery Colours

* More than 50 colours are available upon request

Interested in our product?

Request a Quote

Art-Nr.

EPN kit incl. multicontact pin with internal connecting cable HIGHLY RECOMMENDED FOR DIALYSIS 713E004
Rechargeable battery back-up operation in case power failure (1,2 Ah) 713E006
USB charging unit for smart devices (5V, 1A) 713E009
Connecting cable (3m) for potential equalization (EPN) 713E012
Comfort-T2 multifunctional table 713M009
Flexible height adjustable armrest for universal medical applications (one pair) 713M010
Integrated gas spring in the arm support for smoother and safer operation (one pair) 713M011
Universal holder for tablets and smartphones 713M013
Handle on both sides of the seat 713M014
4x diameter 10cm swivel castors with total lock 713M021
Removable footrest for standalone exercise application 713M031
Motorized footrest 713M032
Motorized seat tilt adjustment (3rd motor) 713M034
Individual logo on the upholstery 713U011
DuoShape upholstery in individual colour combination (40 diff. colours) TUNDRA 713U026
Transparent protecting plastic cover for the footrest 713U027
Transparent protecting plastic cover for the legrest adjustable between 0° and -30° below horizontal 713U028
DuoShape upholstery with 110 mm thickness in standard Chrom-Perle colour combination 713U031
DuoShape upholstery with 110 mm thickness in individual colour combination (40 diff. colours) TUNDRA 713U032
DuoShape upholstery with memory foam in standard Chrom-Perle colour combination 713U033
DuoShape upholstery with memory foam in individual colour combination (40 diff. colours) TUNDRA 713U034
DuoShape upholstery with flame retardant artificial leather combination (15 diff. colours) PALMA 713U035
Seat height adjustment Seat height fixed at 65 cm
Backrest adjusting range 80° (-7° under horizontal in Trendelenburg position)
Seat tilt adjustment (fixed) Seat position fixed at 7°
Legrest adjustment 30°
Footrest adjustment 25 cm
Size of upholstery L 175 x W 60 x H 9.5 cm
Armrest size L 57 x W 15 x H 6.5 cm
Size of castors 4 x Ø 7.5 cm twin wheel castors with total lock
Weight of chair 63 kg
Maximal load 200 kg weight capacity
Standard power supply 100-240V AC, 50/60 Hz
Technical data of motors 24V DC, IPX6
Frame colour RAL 9001
Applied directive and standards 2017/745 (MDR) and harmonized standards
