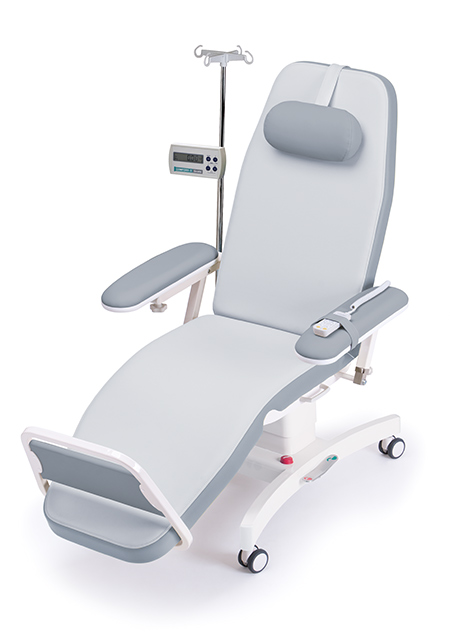

Comfort-3 Scale

Therapy chair with excellent price-value rate

C3_Scale_Therapy_tabletnelkul_agave-perle[1]

The Comfort-3 product line features a new underframe structure that has been developed to meet the highest expectations of design combined with ease of the cleaning. The Comfort-3 Scale chair offers continuous measurement of the patient’s weight, thus providing extra control of the dialysis process and also decreasing the administration load on the nursing staff. The weight is displayed at the chair but optionally the data can be forwarded to central data management systems. Due to the structure of the chair the scale function is less costly while providing the same accuracy.

Applications: In Center Dialysis

Request a Quote
Fixed seat height 58 cm
Optional height adjustment range 62-75 cm
Backrest adjusting range 80° (-14° under horizontal in Trendelenburg position)
Seat tilt adjustment 14°
Legrest adjustment 30°
Footrest adjustment 25 cm
Size of upholstery L 210 × W 60 × H 9.5 cm
Armrest size L 57 × W 15 × H 6.5 cm
Approved scale accuracy 100 g
Dimensions in seat position L 145 × W 87.5 cm
Size of castors 4 × Ø 7.5 cm twin wheel castors with total lock
Weight of chair 90 kg
Maximal load 200 kg weight capacity
Standard power supply 100-240 V AC, 50/60 Hz
Technical data of motors 24V DC, IPX6
Applied directive and standards 2014/31/EU, 93/42/EEC and harmonized standards

Adjustments

● Electronic adjustments

Multiple independent adjustment possibilities by 3+2 motors offer patient comfort, plus a reduction in work for staff.

3 motors as standard:

  • backrest
  • seat tilt
  • legrest
  • seat height adjustment (optional)
  • footrest (optional)

● Manual adjustment

  • footrest adjustment manually (optional electronic footrest adjustment is also available)

Handset

Especially designed for medical applications:

  • Longlife micro-switches are located under an exchangeable keypad foil
  • Liquid proof housing with IP 67 protection
  • Easy-to-use 13 buttons handset

Dedicated grey buttons for each movement.

  • Yellow coloured buttons to set EntryBed positions by multimovement
  • The head-down "Trendelenburg" posit ion can be reached easily from any previous one by using the red button
  • Individual buttons for optional movement (seat tilt adjustment and footrest adjustment)

Entry position

Supporting the entry

By using this    button on the handset the chair can be brought to the upright (Entry) position automatically from any previous one. Thereby allowing the patient easily to enter or leave the chair.

Bed position

Perfectly horizontal Bed position

Especially designed construction ensures achieving perfectly horizontal Bed position for maximum patient comfort while passing through several relaxation positions.

By using this    button on handset the chair can be brought automatically into the BED position.

Trendelenburg Position

Real TRB

The backrest adjusting range ensures REAL Trendelenburg position in compliance with EN 60601-2-52:

"the entire mattress support platform shall be able to achieve a minimum of 12° so that the patient’s head is lower than the circulatory centre point of the body."

There are two ways of reaching Trendelenburg position by using the red buttons:

  • on handset by using button
  • additional foot-switches on both sides of underframe (optional)

Tilt-up armrest

The solid upholstered armrest makes it possible to achieve the most suitable and restful arm position for any physique.
It can adjusted in height and entry is facilitated by simply tilting it up.
The multilayered soft armrest cushion is completely sealed against liquids and ensures improved patient comfort.
The distance between armrests can be adjusted also by swivelling completely.

Brake system/castors

Diameter 7.5 cm twin wheel castor with total lock.

Locks the wheels (twin wheel) and swivel simultaneously for maximum stability when the equipment is stationary.

  • Twin wheel rotational motion in both directions (lockable)
  • Swivel motion in both directions (lockable)
  • Central operating brake with 4x diam. 7.5 cm twin wheel castors is optional
Standard colour combinationDuoShape upholstery

Exchangeable upholstery

Clean and modern design with dual colour for fresh look

It has been designed according to the latest developments in orthopaedics and ergonomics.

Can be removed easily with a few movements for cleaning or maintenance. Interchangeable with the previous upholstery types.

This new easy-to-clean upholstery covered by blood resistant artificial leather which is resistant to disinfectants, blood and urine too. The unified seat and legrest surfaces are more comfortable and easier to clean.

Instead of standard Chrom/Perle upholstery more than 50 alternative colours are available upon request.

Specialities

  • Perfect horizontal BED position

  • Real TRB position that meets TRB Compliance of EN 60 601-2-52 201.15.4.6.2 "the entire mattress support platform shall be able to achieve a minimum of 12° so that the patient’s head is lower than the circulatory centre point of the body."

  • Weight measurement system
    It provides continuous monitoring of patient weight and weight change during treatments.
    It has been tested and certified by Notified Body which is required for Authenticated Officials to legally verify accuracy of the scale.

Many other colour combinations available

Sample Upholstery Colours

* More than 50 colours are available upon request

Interested in our product?

Request a Quote

Art-Nr.

EPN kit incl. multicontact pin with internal connecting cable HIGHLY RECOMMENDED FOR DIALYSIS 713E004
Trendelenburg foot-switches on both sides of underframe 713E005
Rechargeable battery back-up operation in case power failure (24V DC) 713E006
Connecting cable (3 m) for potential equalization (EPN) 713E012
Comfort-T2 Multifunctional table 713M009
Flexible height adjustable armrest for universal medical applications (one pair) 713M010
Integrated gas spring in the arm support for smoother and safer operation (one pair) 713M011
Push bar 713M012
Universal holder for tablets and smartphones 713M013
Handle on both sides of the seat 713M014
4× diameter 10 cm swivel castors with total lock 713M021
Motorized footrest 713M032
Paper roll holder 713M033
Motorised height adjustment 713M049
Central operating brake with 4× diam. 7.5 cm twin wheel castors 713M050
Foldable side rail 713M064
Plastic side rail set 713M066
Individual logo on the upholstery 713U011
Headrest pillow square 713U012
DuoShape upholstery in individual colour combination (40 diff. colours) TUNDRA 713U026
Transparent protecting plastic cover for the footrest 713U027
Transparent protecting plastic cover for the legrest adjustable between 0° and -30° below horizontal 713U028
DuoShape upholstery with flame retardant artificial leather combination (15 diff. colours) PALMA 713U035
